High-Level Architecture

This page describes the architecture of a Ocean Enterprise system

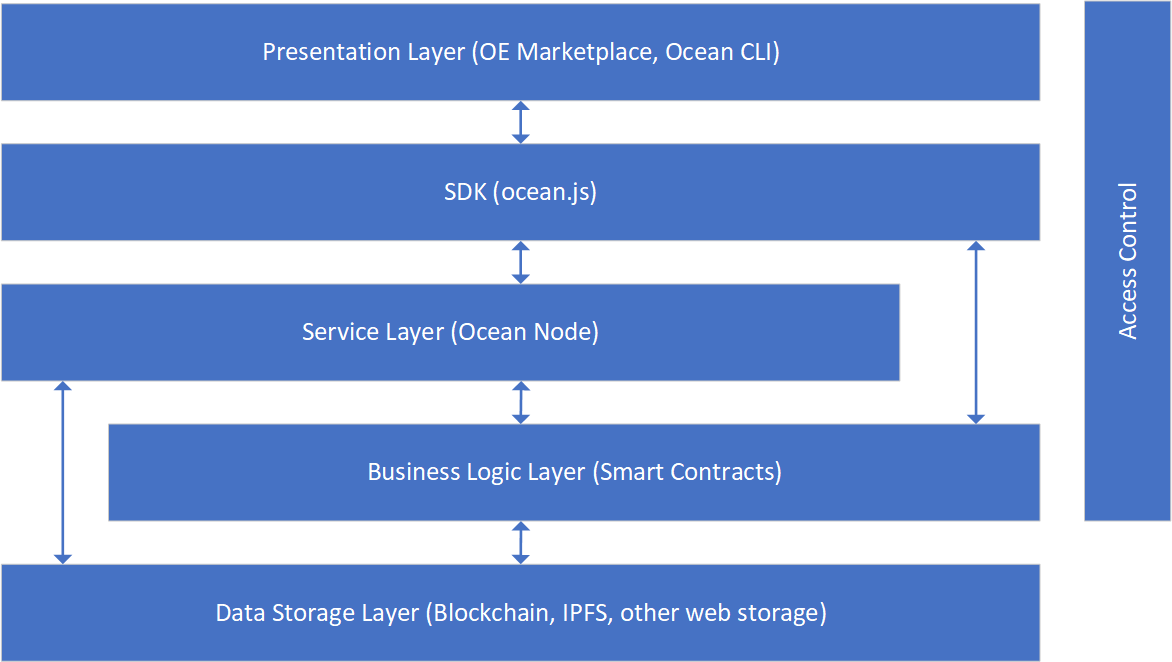

Ocean Enterprise has a multi-layer architecture, as presented in the following diagram.

Data Storage Layer: handles saving and retrieving of the data managed by the OE stack. The following types of storage are used:

• IPFS for storing the asset description. When an asset is created in OE, its description, including all metadata attached to the asset, is saved in IPFS.

• Blockchain for storing the reference to the asset description. After the description of the asset is created in IPFS, the reference to the IPFS object is saved in a transaction on the blockchain.

• Web storage for storing the actual content of the assets. For assets of type dataset or algorithm, their content is saved on a storage platform accessible via the HTTP protocol. The storage platform can be either on the publisher's premises or in the cloud.

Business Logic Layer: Ocean Enterprise enables a decentralized exchange of data, on one side, and value, on the other side, between a publisher and a consumer. The core element that enables this exchange is represented by the Smart Contracts deployed on-chain. To this end, the OE Smart Contracts implement the flows for publishing and consuming assets. This layer includes factory contracts, templates for data NFTs and data tokens, fixed-rate exchange contracts for paid assets, and Dispenser contracts for free assets.

Services Layer: Represented by the Ocean Node component, this layer acts as a bridge between the Business Logic Layer and SDK, orchestrating how requests are processed and how business logic is executed. It provides the following services:

• orchestration of the entire consumption flows (download and Compute-To-Data).

• validation for requests.

• data encryption/decryption

• data streaming of the purchased asset to the consumer

• indexing mechanisms for assets

• abstraction of the complexity of the business and data layer, exposing clean APIs

SDK: The ocean.js library encapsulates the Smart Contract functions to create assets as well as the services provided by Ocean Node in JavaScript functions, which can be used to develop OE-enabled business applications.

User Interface: This facilitates the interaction between an end-user and the system. OE provides two interfaces:

• Ocean Enterprise Marketplace: a graphical interface where users can publish, retrieve, and consume assets in a very user-friendly manner. The user interface controls how data is displayed and how it responds to user actions. It also performs input validations before passing data to deeper levels.

• Command Line Interface (CLI): a set of high-level tools that enable the creation and consumption of OE assets from a command line interface. This is appropriate when OE assets need to be manipulated in back-end like applications, where a user interface is not required.

Access Control Layer: Is a critical component that governs who can interact with specific resources in OE and under what conditions. It acts as a gatekeeper, enforcing policies that determine user permissions based on identity or other descriptive attributes. This layer controls, for instance, who is allowed to publish assets, who is allowed to consume a specific asset, or what algorithm is allowed to be executed on top of a specific dataset.
